Home / / SAE Flange L.T. / SAE Flange 3000psi
SAE Flange 3000psi

SAE Flange 3000psi

PEHEL Hydraulic Model: P87312

QTY:

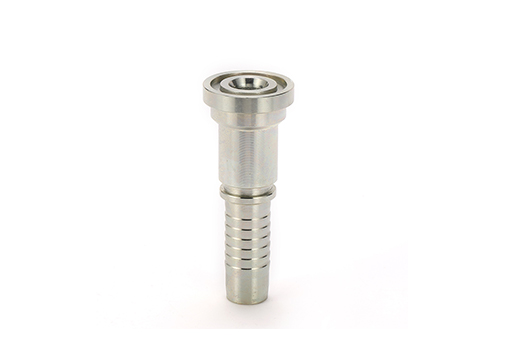

SAE 3000 PSI Flange 87312 Hydraulic Hose Fittings Carbon Steel Material Flange

  • SAE Female 3000psi ISO Flange Fittings [China sae hydraulic flange ]

  • Installation: Plate
    Drive: Hydraulic
    Type: Hydraulic Power Units
    Name: Block
    Stock: Yes
    Color: White

  • SAE Flange 3000psi Specification
  • Features
  • You May Also Like
  • PART NO. FLANGE SIZE HOSE BORE DIMENSIONS
    DN DASH A C D L
    87312-08-08 1/2" 12 08 46 30.2 23.9 7
    87312-12-08 3/4" 12 08 47 38.1 31.7 7
    87312-12-10 3/4" 16 10 48 38.1 31.7 7
    87312-12-12 3/4" 20 12 49.3 38.1 31.7 7
    87312-12-16 3/4" 25 16 50 38.1 31.7 7
    87312-16-12 1" 20 12 50.3 44.4 38 8.2
    87312-16-16 1" 25 16 52 44.4 38 8.2
    87312-16-20 1" 32 20 53 44.4 38 8.2
    87312-20-16 1.1/4" 25 16 57 50.8 43.2 8.2
    87312-20-20 1.1/4" 32 20 59 50.8 43.2 8.2
    87312-24-20 1.1/2" 32 20 68 60.3 50.3 8.2
    87312-24-24 1.1/2" 40 24 70 60.3 50.3 8.2
    87312-32-24 2" 40 24 70 71.4 62.2 9.8
    87312-32-32 2" 50 32 70 71.4 62.2 9.8
    87312-40-40 2.1/2" 64 40 80 84.1 74.2 9.8
    NOTE:1.For use with braided hoses.                   2.If use with spiral hoses,hose fitting series number is 87311-XX-XX。

  • Basic Info.

  • Model NO.
    		87312
    Finish
    		Zinc-Plated
    Transport Package
    		Plastic Bag + Carton + Plastic Film Lined Pallet
    Trademark
    		PEHEL
    HS Code
    		73079900

    Color
    		White or Yellow
    Size
    		All
    Specification
    		ROHS AND SGS
    Origin
    		Ningbo, China
    Production Capacity
    		5, 000, 000PCS / Month

  • Product Description

  • Quick Details

     Delivery Detail: 1-2weeks

    Package Detail:  Nylon plastic+corrugated carton +Multiple plywood case

    Custom-orientated Service: produce according to your drawings or sample, offer custom-design

    Our advantage:        1. High quality                  2. Rich inventory

                                     3. Prompt delivery           4. Reasonable price

  • PRODUCT information
  • PART NO.FLANGE SIZEHOSE BOREDIMENSIONS
    DNDASHACDL
    P87311-08-081/2"12084630.2246.73
    P87311-12-083/4"12084738.131.76.73
    P87311-12-103/4"16104838.131.76.73
    P87311-12-123/4"20124838.131.76.73
    P87311-12-163/4"25164938.131.76.73
    P87311-16-121"20125144.4388
    P87311-16-161"25165244.4388
    P87311-16-201"32205344.4388
    P87311-20-161.1/4"25165750.8438
    P87311-20-201.1/4"32205850.8438
    P87311-24-201.1/2"32206860.3508
    P87311-24-241.1/2"40246860.3508
    P87311-32-242"40247071.4629.53
    P87311-32-322"50327071.4659.53
    P87311-40-402.1/2"64407684.1749.53
    Note: 1.For ues with braided hoses.      2.If use with spiral hoses,hose fitting series number is 87312-XX-XX.

  • Ningbo Yinzhou Pehel Machinery Co.,Ltd (originally Ningbo Yinzhou Hengxi Dongming Machinery Factory) has been engaged in hydraulic components' design and production  for fifteen years and has passed ISO9001 Quality Certificate among the first. We have own import & export license.

  • FAQ

    1. Do you have products in stock?

      Yes, for most porducts, we have.

     2. Can you produce Non standard product?

    Yes, we can produce products as your requirements (according to your sample or drawing)

     3. What is your payment terms?

    Regularly,our payment term is : 30% deposit advance the producing, 70% balance before shiping.

     4.Can you accept  LC payment?

    Yes, we can.

     5.Can you provide samples?

    Yes.
