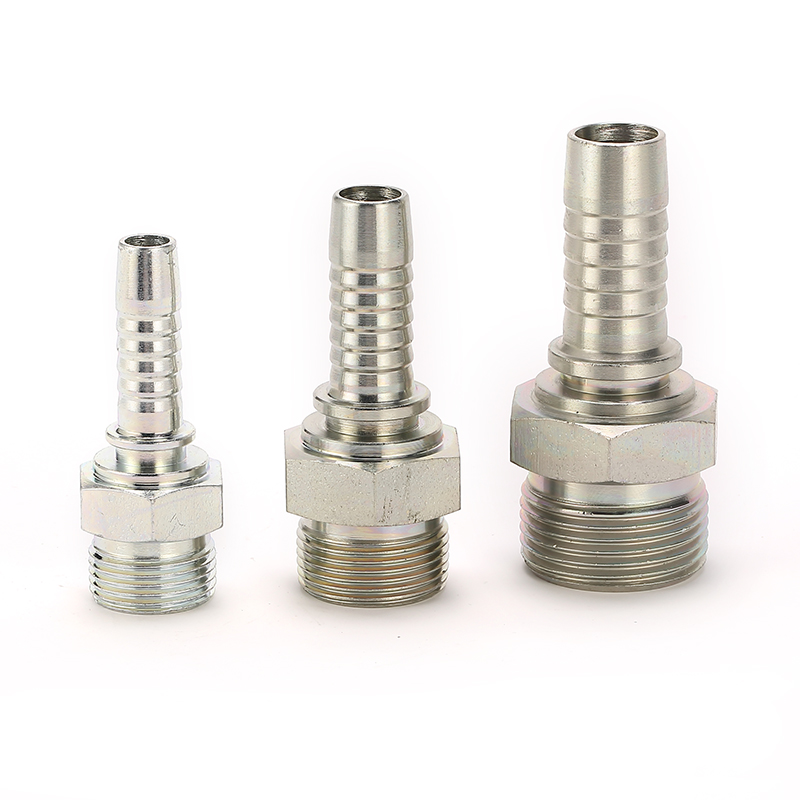

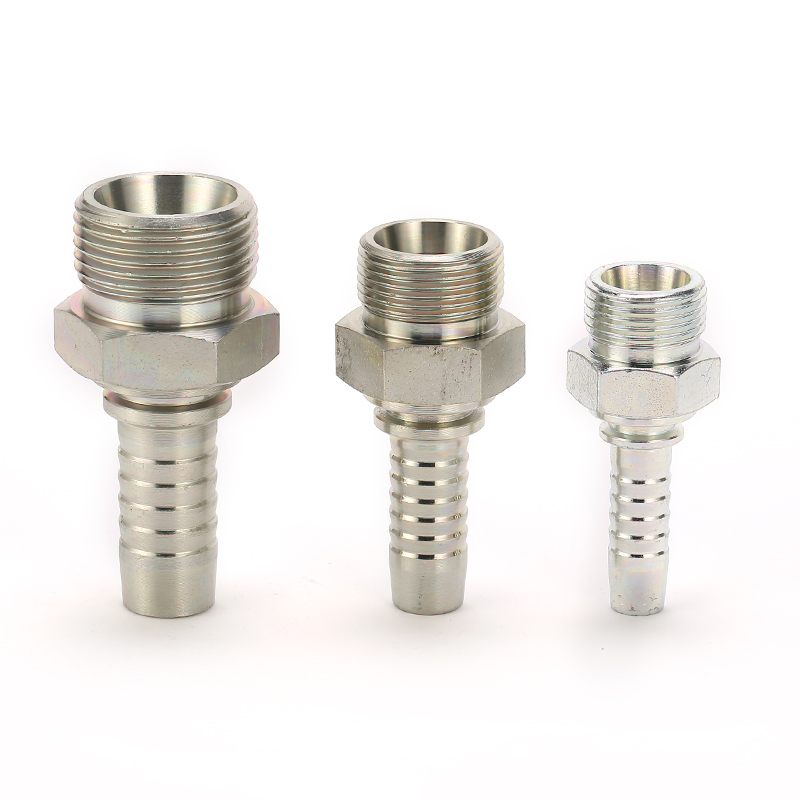

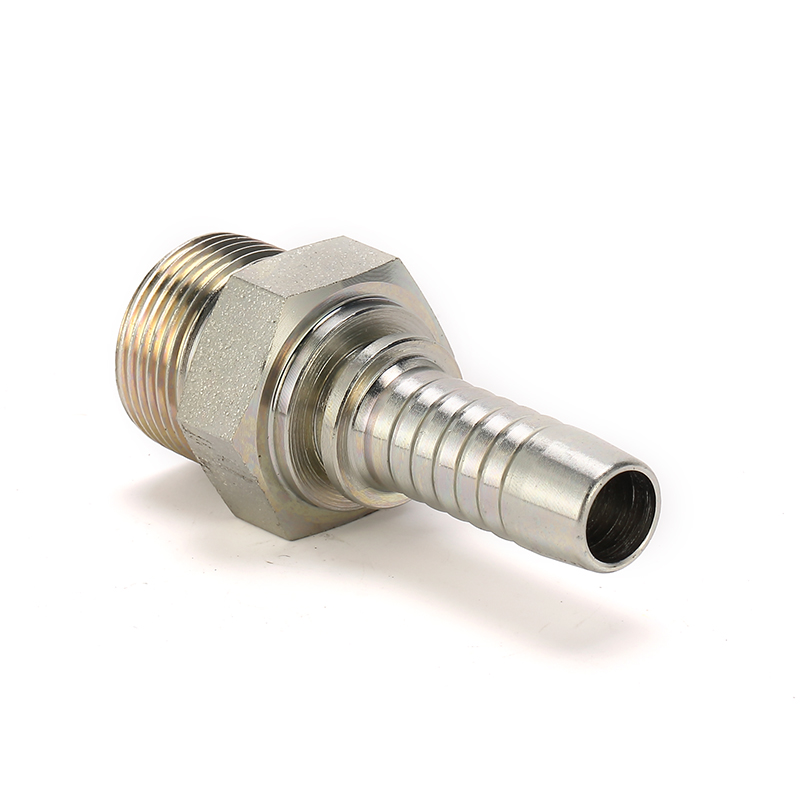

Metric Male24º Cone Seat H.T.

Metric Male24º Cone Seat H.T.

PEHEL Hydraulic Model: P10511

QTY:

Metric Male 24 Cone Seat H. T. DIN3853 Hose Fitting 10511

  • Metric Male24º Cone Seat H.T. Specification
  • You May Also Like
  • PART NO THREAD E HOSE BORE TUBE O.D. DIMENSIONS
    DN DASH C S1 Per hundred weight
    		 Weight per case
    P10511-14-04 M14X1.5 6 4 6 13.5 17 2.5 300
    P10511-16-04 M16X1.5 6 4 8 13.5 17 3.5 250
    P10511-18-04 M18X1.5 6 4 10 13.5 19 4.3 200
    P10511-20-05 M20X1.5 8 5 12 13.5 22 5.5 180
    P10511-20-06 M20X1.5 10 6 12 13.5 22 5.7 150
    P10511-22-05 M22X1.5 8 5 14 14 24 6.9 150
    P10511-22-06 M22X1.5 10 6 14 14 24 7.5 150
    P10511-24-08 M24X1.5 12 8 16 14 27 9.7 120
    P10511-30-10 M30X2 16 10 20 19 32 14.5 150
    P10511-30-12 M30X2 20 12 20 19 32 17 125
    P10511-36-12 M36X2 20 12 25 20 38 24.4 100
    P10511-36-16 M36X2 25 16 25 20 38 27 80
    P10511-42-16 M42X2 25 16 30 20 46 35.6 50
    P10511-42-20 M42X2 32 20 30 20 46 39.8 40
    P10511-52-20 M52X2 32 20 38 22 55 61.3 30
